The concept is the contract

The machine turnaround is the modelling contract this pack is audited against — four framed panels pinned by form clauses ("a hand-lever platen press, NOT a roller cylinder press, NO exposed gears") so the structure survives every view. Beside it, the buildability probe: the same press authored headless in Blender — arch frame, screw and platen, rolling bed on rails, lever and rounce crank.

Hand press turnaround — front, side, back and three-quarter panels

The turnaround — front, side, back, three-quarter; one machine in every panel

The probe-built hand press, three-quarter view

The probe build, three-quarter — arch, pinstripes, platen, chase and bed, lever and crank

Key art and the three zones

One committed palette — cast-iron black, oiled oak, paper cream, vermilion ink, printer's navy, matte brass — across every sheet. The three zones follow the work: the press room where sheets are pulled, the composing room where the type is set, and the alley where the posters end up.

Key art — the hand press mid-pull in the lamplit press room at dusk

Key art — the press mid-pull at dusk; the freshly printed sheet carries the pack's sun ornament

The Press Room — posters drying overhead

The Composing Room — type cases and the locked form

The Poster Alley — layered posters at dusk

Props and materials, named for production

Seven props at one scale, each a fully separate object, and an eight-swatch material board — every entry named in the pack's element inventory, the written canon production builds from. Both sheets came out clean on the first attempt — the lab's prompt-formula stack at work.

Prop sheet — composing stick, brayer, ink tin, paper bale, quoin key, type drawer, galley tray

Props: composing stick, ink brayer, vermilion ink tin, paper bale, quoin key, type-case drawer, galley tray

Material board — eight swatches from cast iron to worn brick

Materials: cast iron, oiled oak, cream paper, wet vermilion ink, lead type, matte brass, printer's navy, worn brick

The buildability probe, angle by angle

Every pack in this lab ships only after an asset is actually modelled from its sheets. The press took five audit rounds — the first fused frame read as a necklace of floating balls, a sparse spline flared the arch wide of its columns, and a numeric bounds check finally exposed a half-scale dimension bug — before the cast-iron massing, closed support chains and pinstripes landed. The glTF below is the shipped artifact, not an illustration.

Front — arch, daylight, chase and sheet

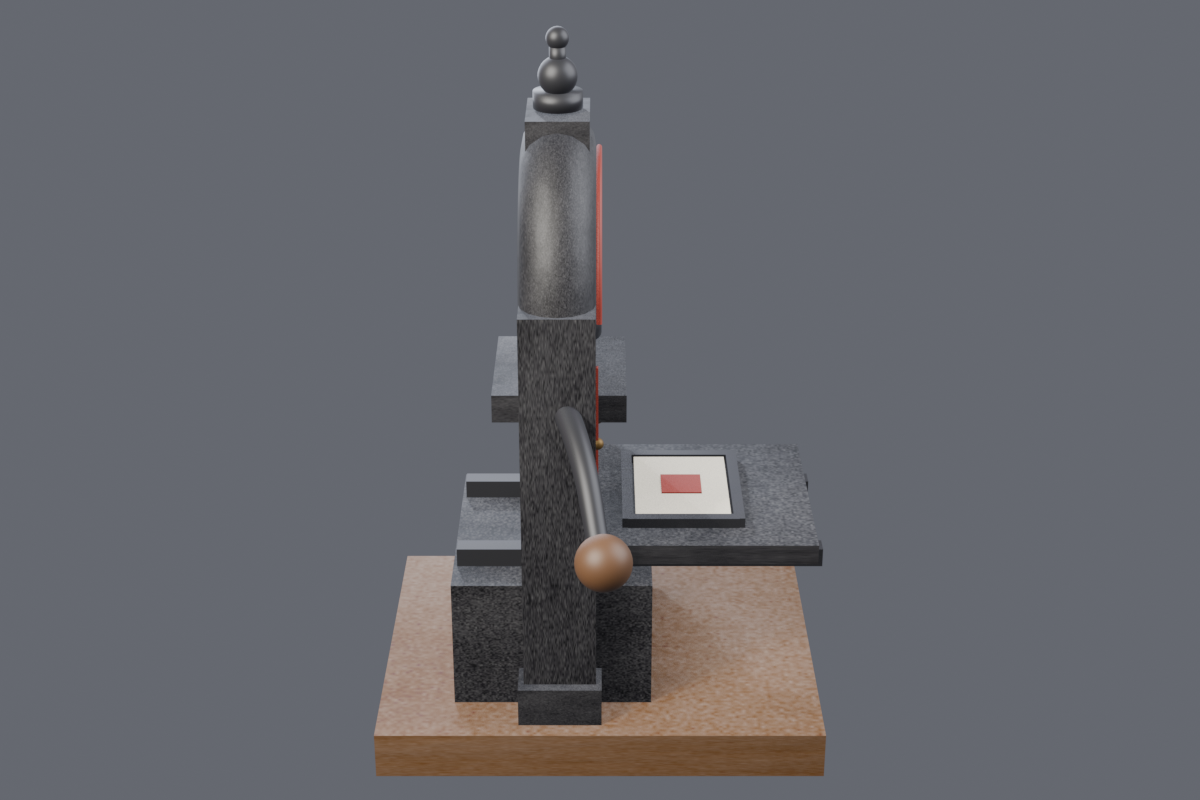

Side — lever ball, bed off the rails' end

Back — the frame carrying the screw

Measured

Measurement	Value	Conditions
Sheet generations	8 total (7 base + 1 regeneration)	6 of 7 sheets first-try clean; props and materials clean on attempt one
The one regen	key art, 2 attempts	the in-scene poster rendered a half-garbled title — diegetic text garbles where title cards don't; v2 uses a wordless sun ornament
Coherence audit	1 round + confirming pass, clean	subject identity, proportions ≤10%, one palette, all elements nameable
Probe authoring rounds	5	rounds 1–3 lost to a fused-frame blob, spline overshoot, and a half-scale box bug found by numeric bounds, not eyeballing
Press build	~0.90 m tall, 60+ parts, 0 fuses in the frame	primitives + swept tubes; every support chain closed (arch→screw→platen, body→rails→bed)
Pack name	renamed at ship time	"The Ink & Quoin" shared its lead word with an existing piece ("Inkbout", Godot Lab) — caught by the collision sweep, renamed before publishing
Shipped press glb	1.7 MB	un-optimised probe artifact, procedural materials

Craft features, earned

Primitive machine massing

Cast-iron reads come from chunky beveled boxes and turned cylinder stacks — the voxel-fuse blob of round one was the wrong tool for machinery.

Exact-arc structural curves

The arch is a dense 13-point computed semicircle with both ends buried in the column tops — sparse splines overshoot and float.

Closed support chains

Lever rooted inside its column, screw buried in the arch apex, crank axle in the body, bed on its rails — machines forgive no floats.

Numeric bounds verification

A per-part bounding-box print against intended spans exposed the half-scale bug that three rounds of looking at renders had missed.

Track-quaternion aiming

The swept lever and every angled segment aim with to_track_quat — the alignment rule an earlier vehicle probe earned.

Working-detail dressing

Chase rails, a 20-block lead type form, the ornament proof sheet and six brass bolts dress the machine the way the sheets demand.

press 0.90 m tallarch arc 13 points arch tube ⌀ 92 mmplaten 190 × 165 mm bed travel on 2 railstype form 5 × 4 blocks lever ball ⌀ 66 mm6 brass bolts pinstripe 3.5 mmfinial 4-piece spire
